Luger Voyager 30
Ketch Assembly Instructions and Drawings
Sheet 17-22 of 22

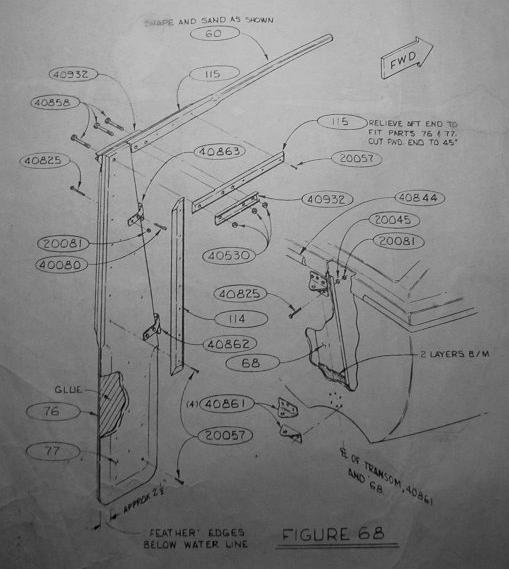

Figure 68, Tiller

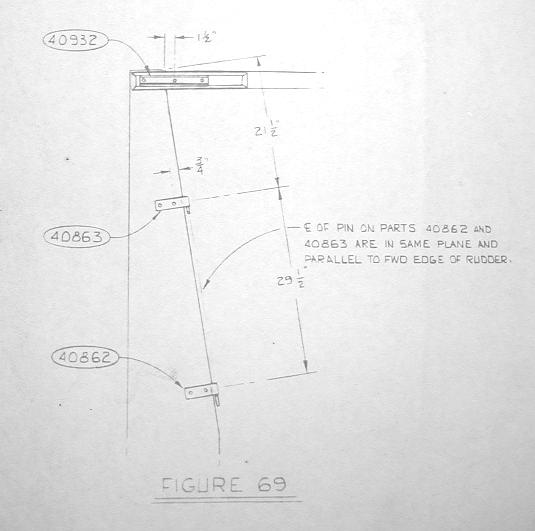

Figure 69, Rudder

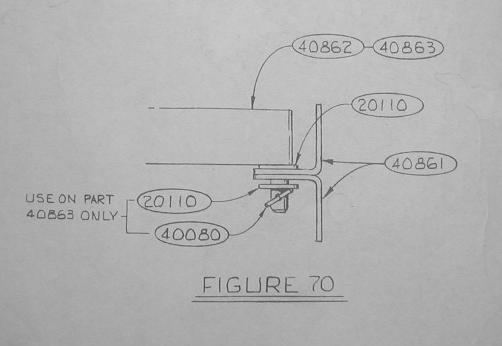

Figure 70, Rudder Gudgeon

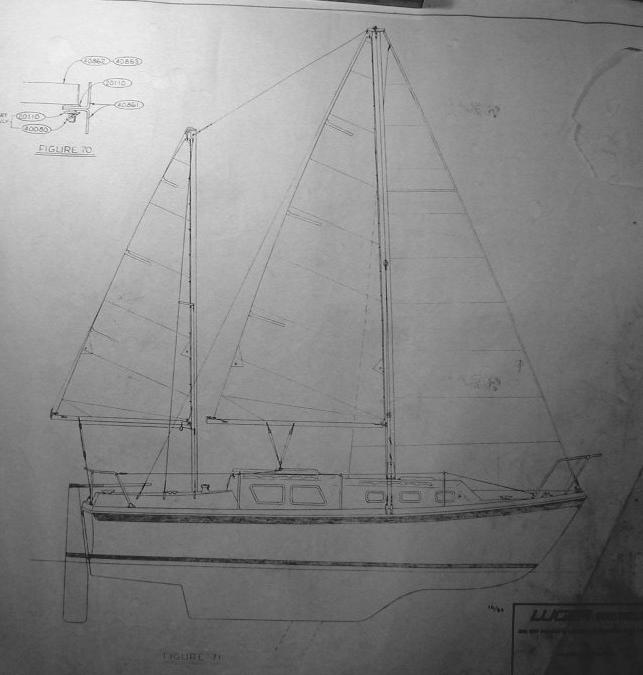

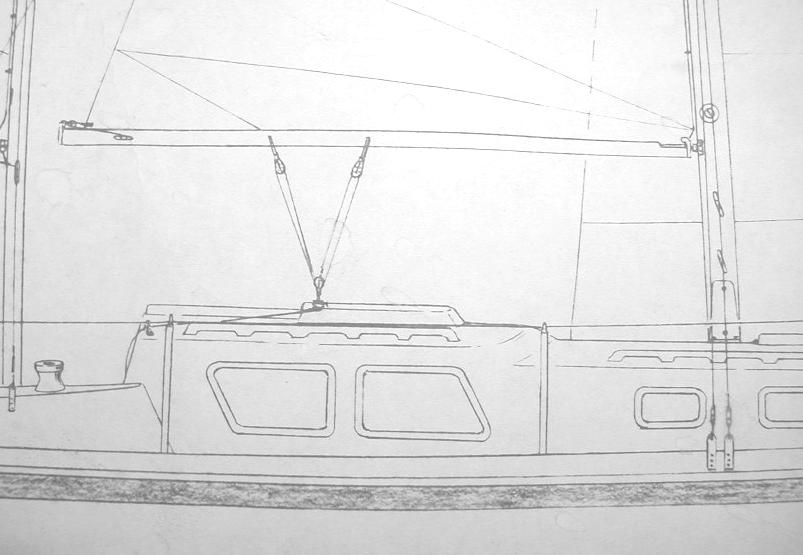

Figure 71, Luger Voyager Ketch, Starboard Side
Figure 71, Mainsail Detail

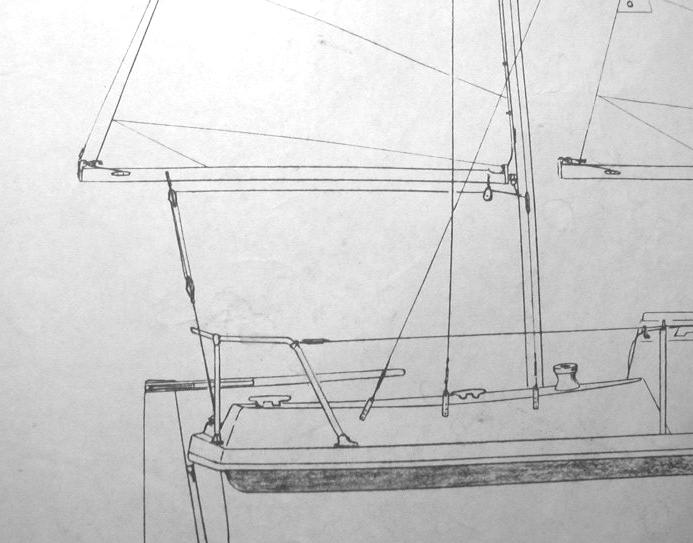

Figure 71, Mizzen Detail

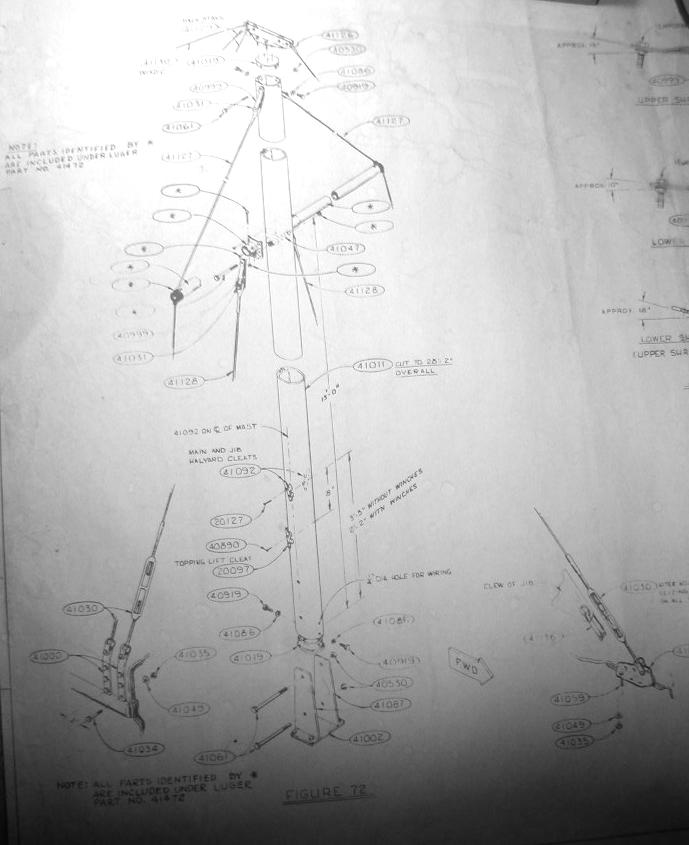

Figure 72, Mainmast

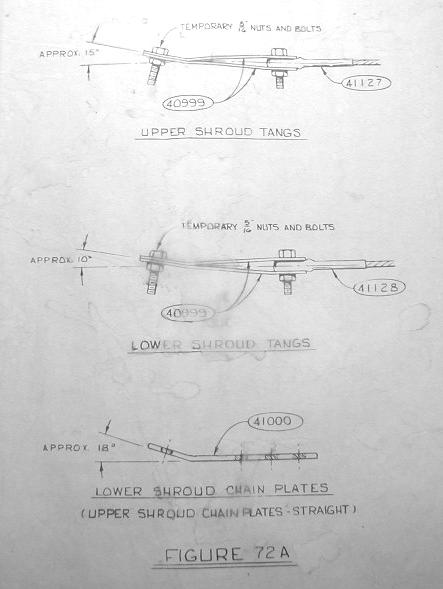

Figure 72A, Mainmast Shroud Tangs, Chain Plate

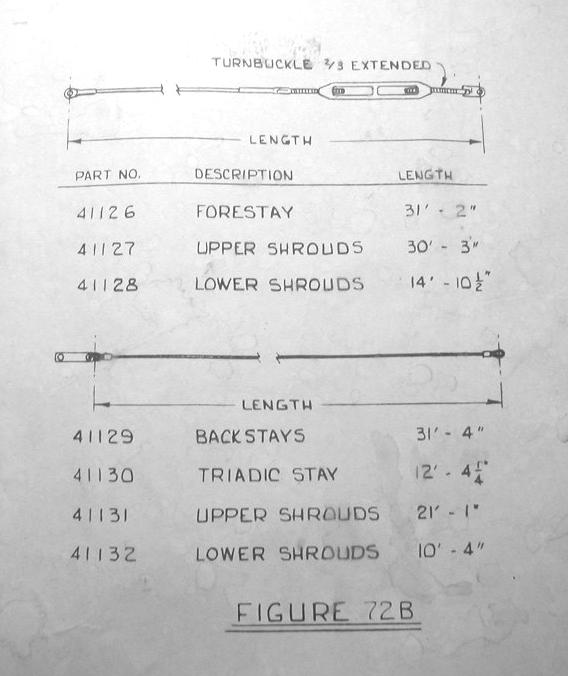

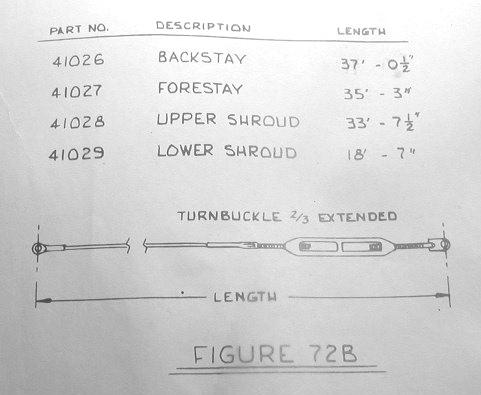

Figure 72B, Table of Mainmast Shrouds and Stays Specifications

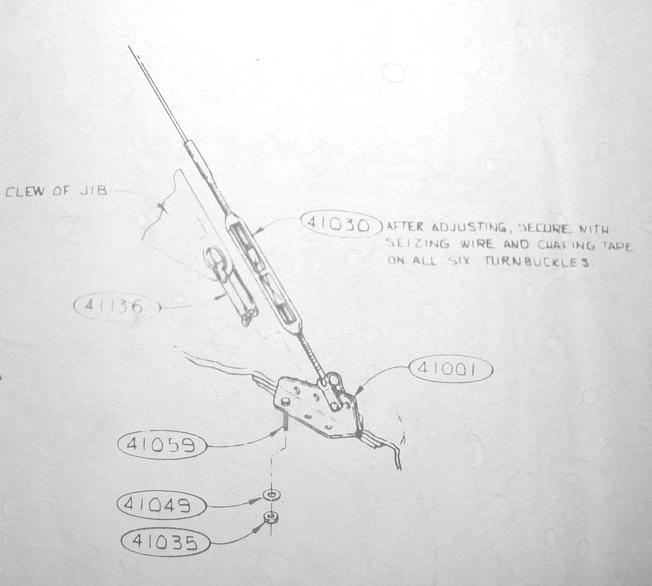

Figure 72, Mainmast Stemhead

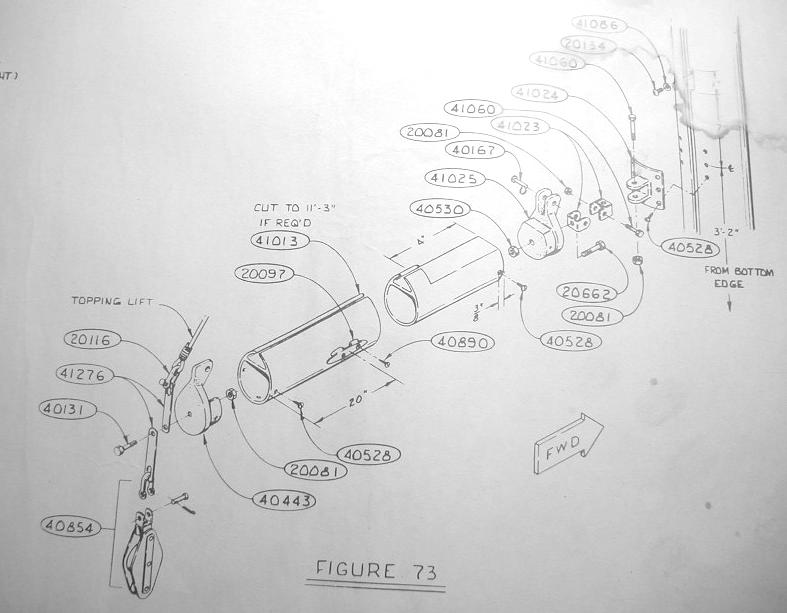

Figure 73, Mainmast Boom

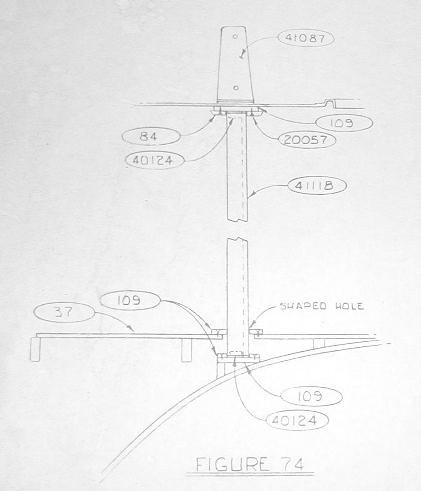

Figure 74, Mainmast Support Post

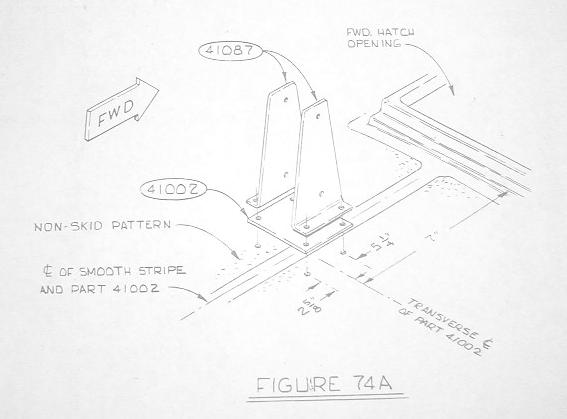

Figure 74A, Mainmast Tabernacle

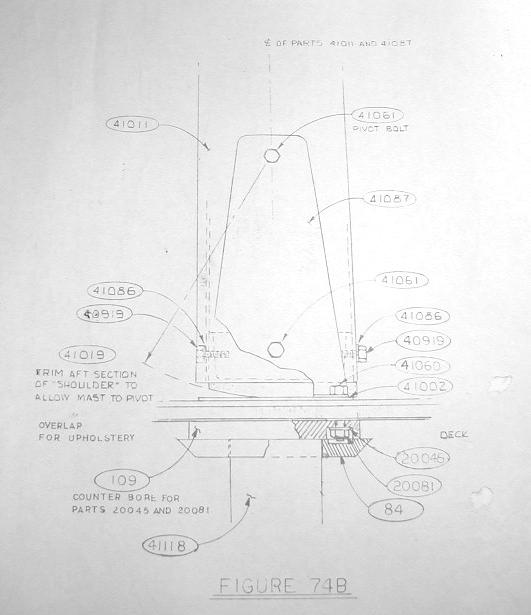

Figure 74B, Mainmast, Tabernacle Assembly

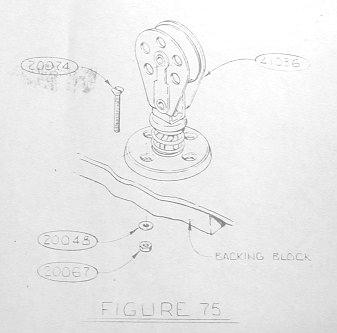

Figure 75, Running Block

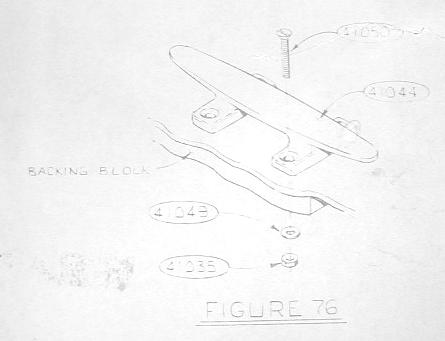

Figure 76, Deck Cleat

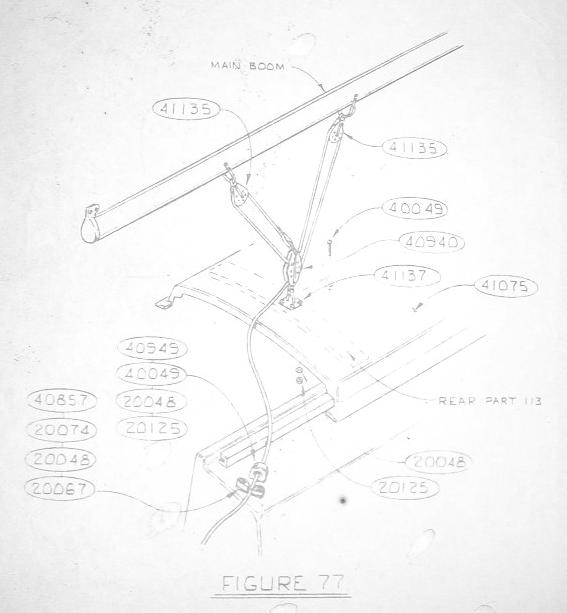

Figure 77, Main Sheet

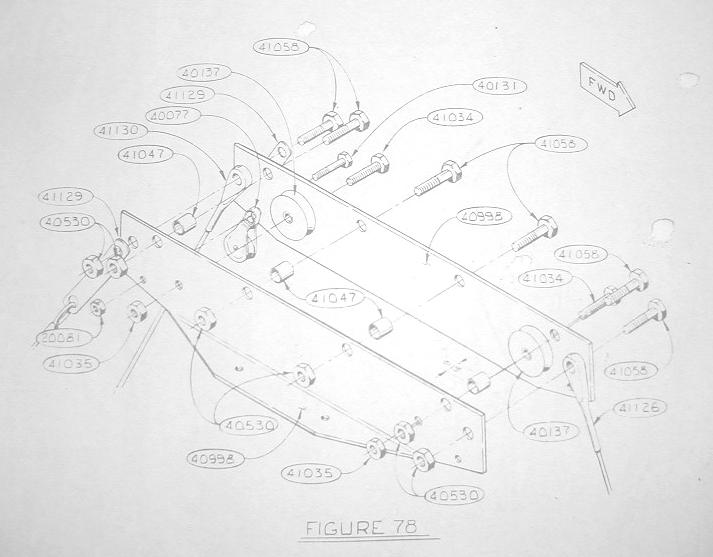

Figure 78, Masthead Parts

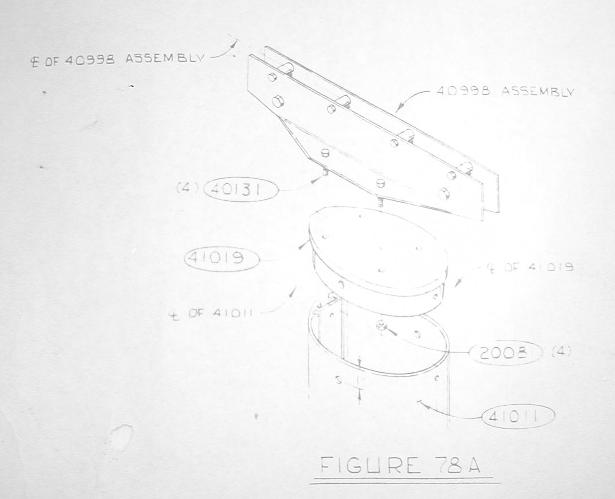

Figure 78A, Masthead Assembly

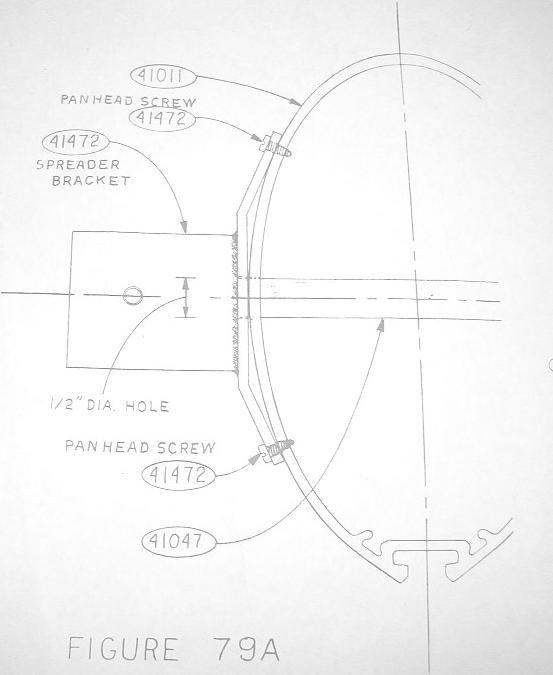

Figure 79A, Spreader Attachment

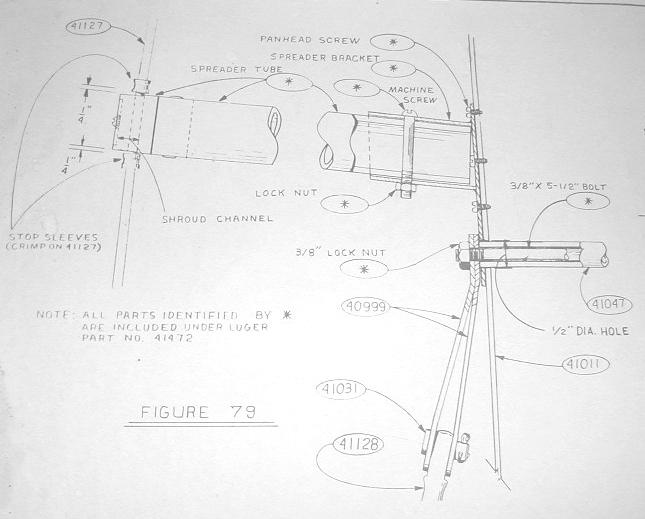

Figure 79, Spreader
Figure 80, Mainmast Cleats

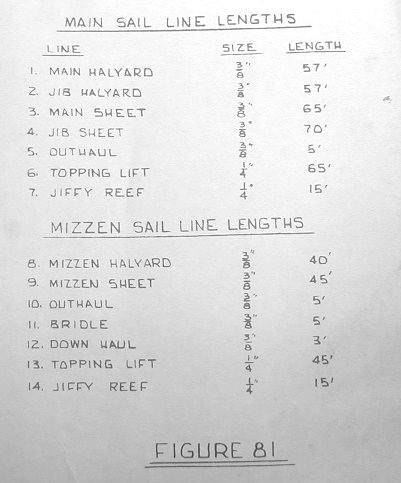

Figure 81, Table of Mainsail Line Lengths

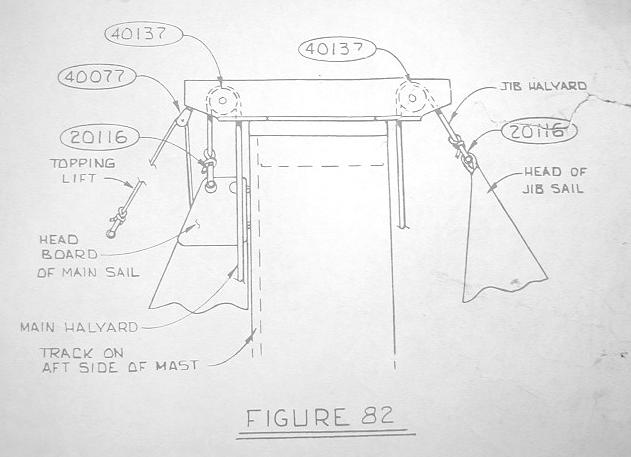

Figure 82, Masthead Stays

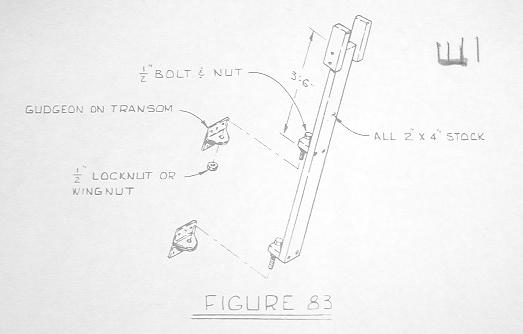

Figure 83, Crutch to Support Boom when Trailering (Replaces Rudder)

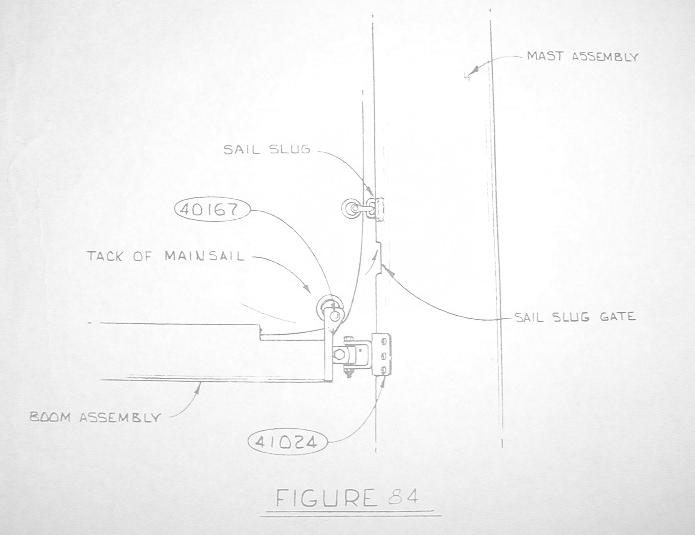

Figure 84, Mainmast, Boom Assembly

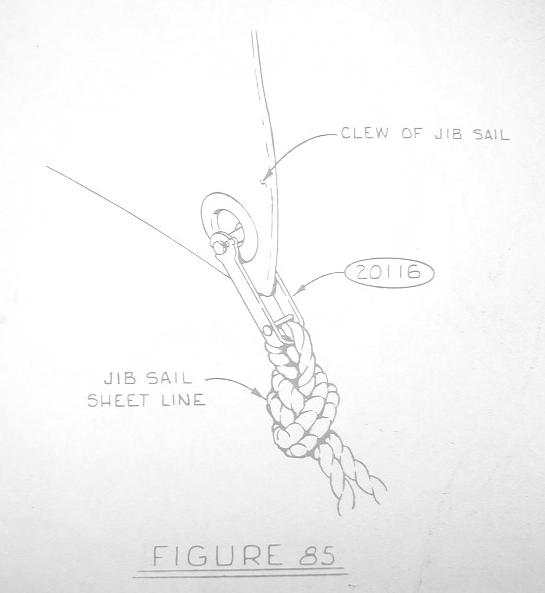

Figure 85, Jib Clew Detail

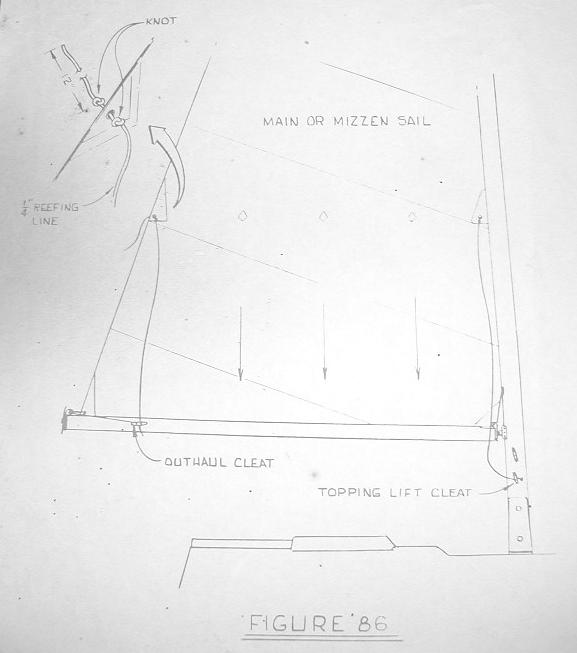

Figure 86, Main or Mizzen Reefing Line, Outhaul and Topping Lift

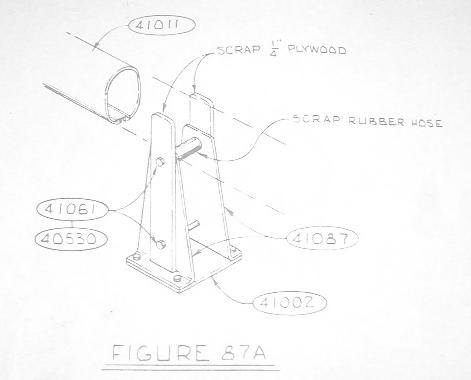

Figure 87A, Tabernacle Modification for Supporting Boom while Trailering

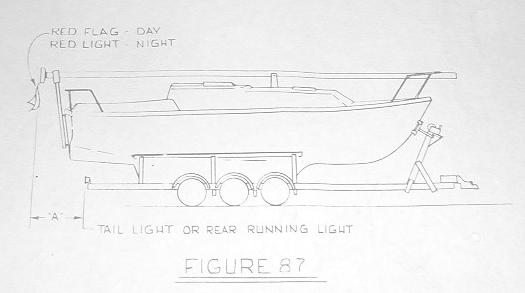

Figure 87, Trailer Towing

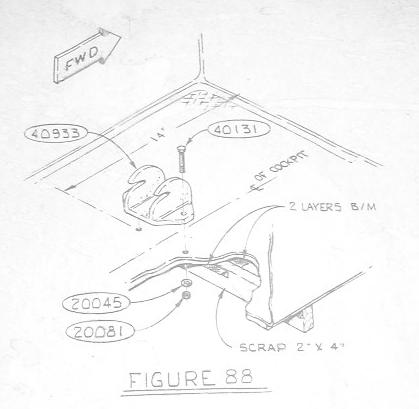

Figure 88, Mizzen Tabernacle Casting

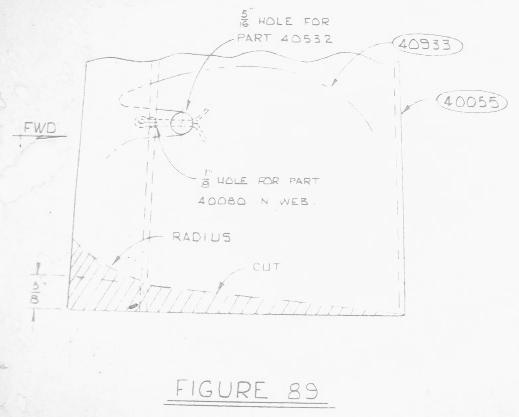

Figure 89, Mizzen Mast Radius Cut

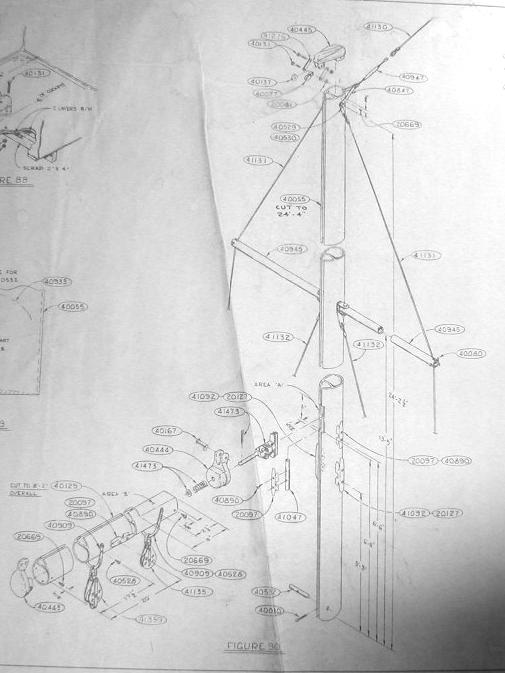

Figure 90, Mizzen Mast and Boom

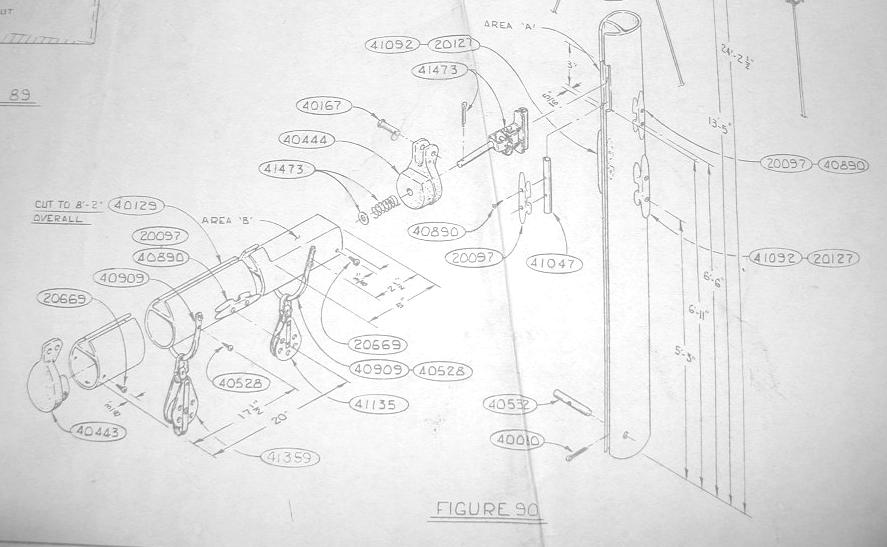

Figure 90, Mizzen Boom Detail
Figure 90, Mizzen Mast Detail
Figure 91, Mizzen Spreader

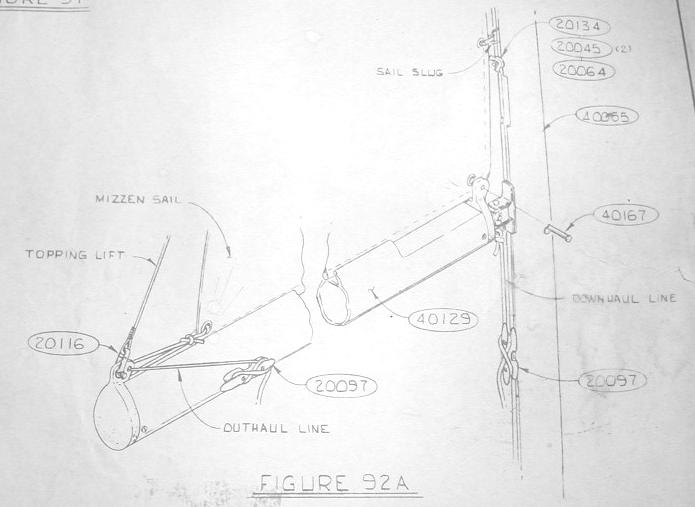

Figure 92A, Mizzen Outhaul, Downhaul

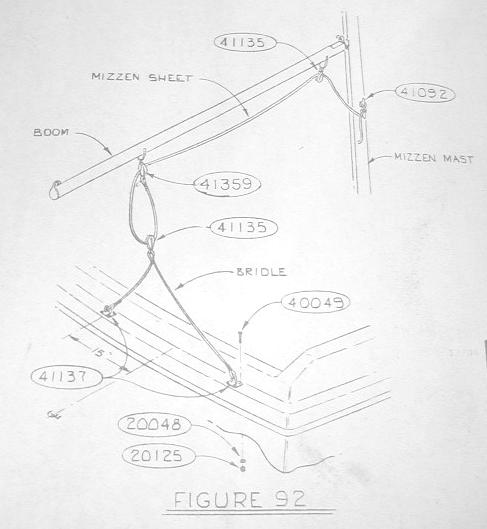

Figure 92, Mizzen Sheet and Bridle Rig

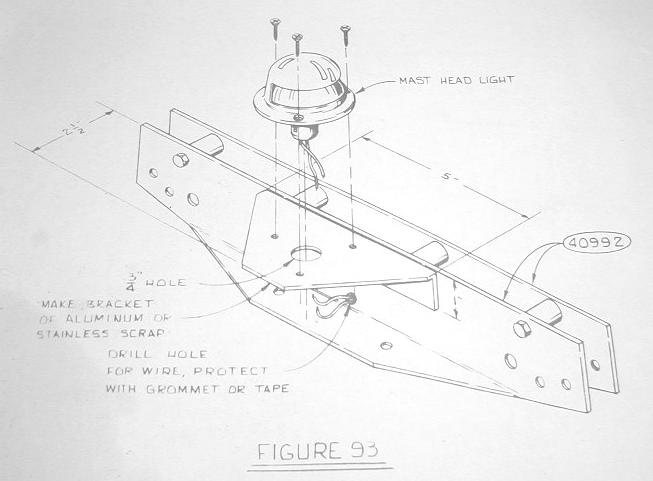

Figure 93, Masthead Anchor Light
Figure 94, Bow Pulpit

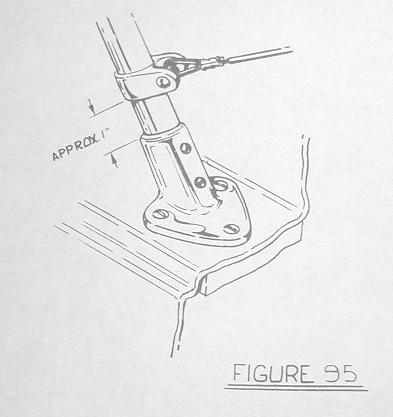

Figure 95, Bow Pulpit Lifeline Attachment

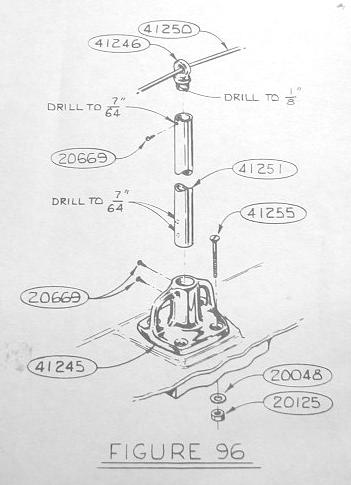

Figure 96, Lifeline Stanchion

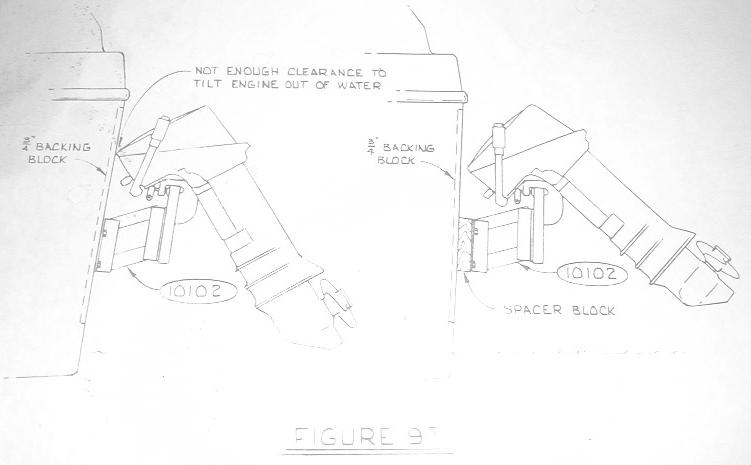

Figure 97, Outboard Mounting

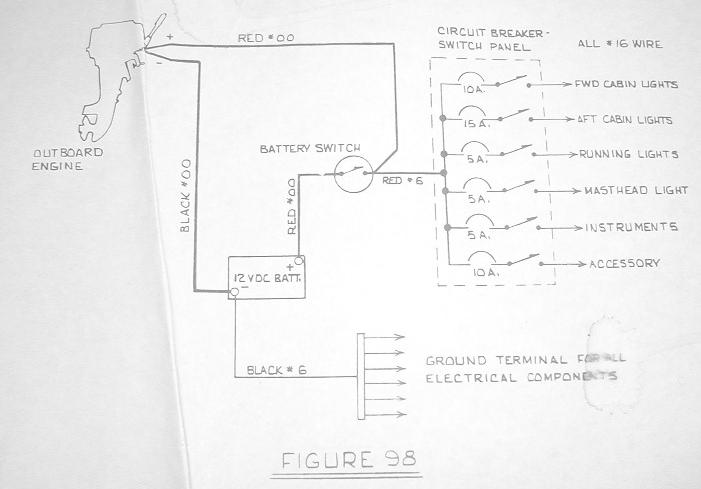

Figure 98, Electrical Schematic, One Battery

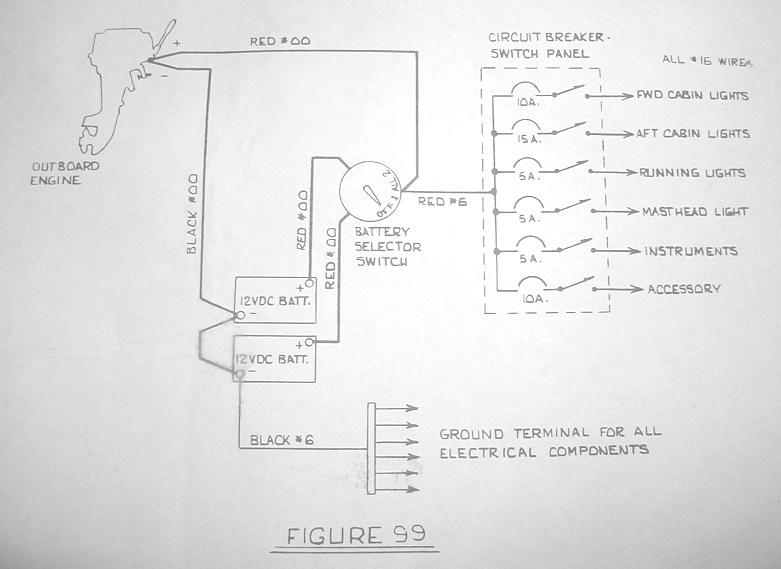

Figure 99, Electrical Schematic, Two Batteries

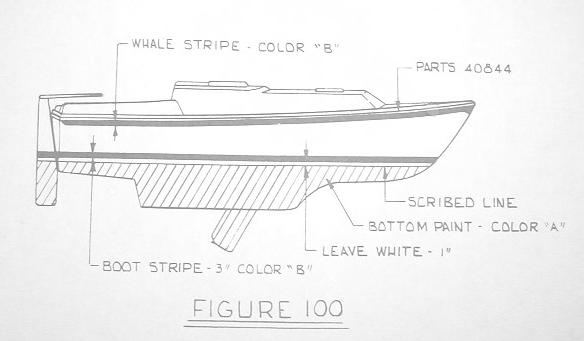

Figure 100, Paint Scheme
Sloop Assembly Instructions and Drawings
Sheet 18 of 21

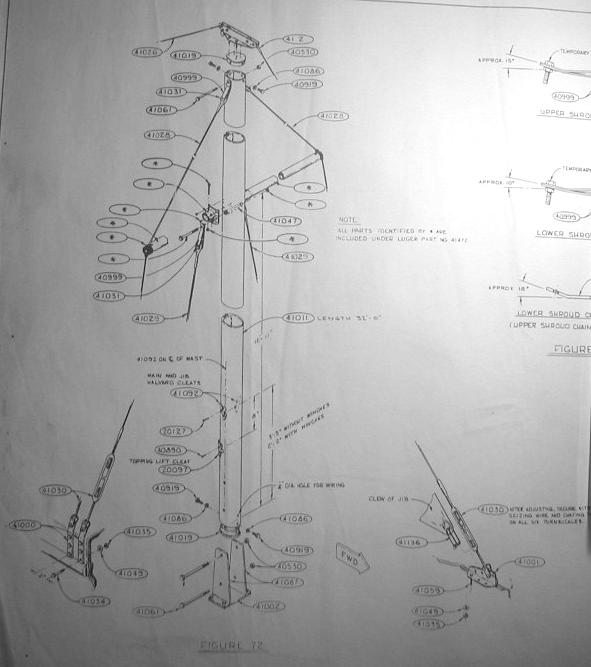

Figure 72, Mast Assembly

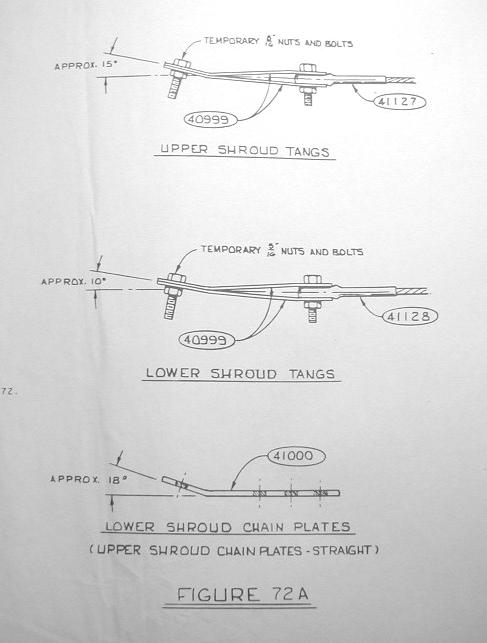

Figure 72A, Mast Shroud Tangs and Chain Plate
Figure 72B, Table of Mast Shrouds and Stays Specifications

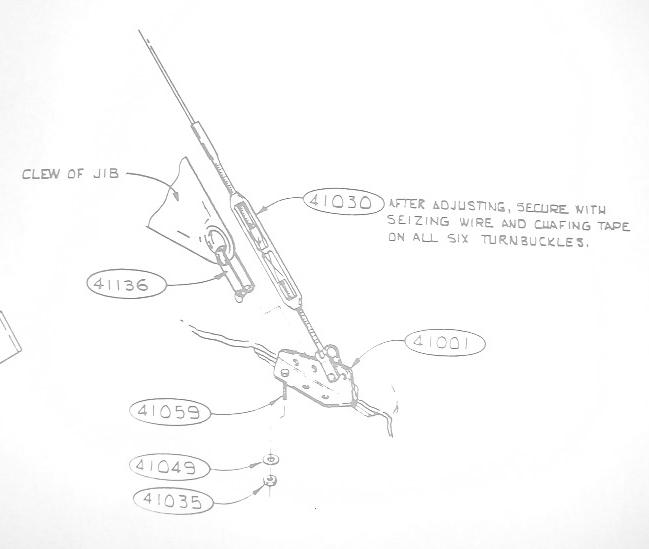

Figure 72, Stem Head Detail

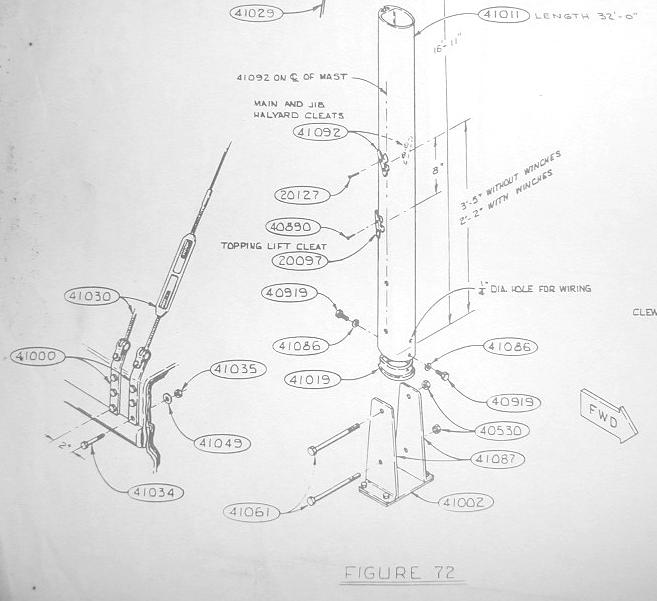

Figure 72, Mast, Lower Section Detail

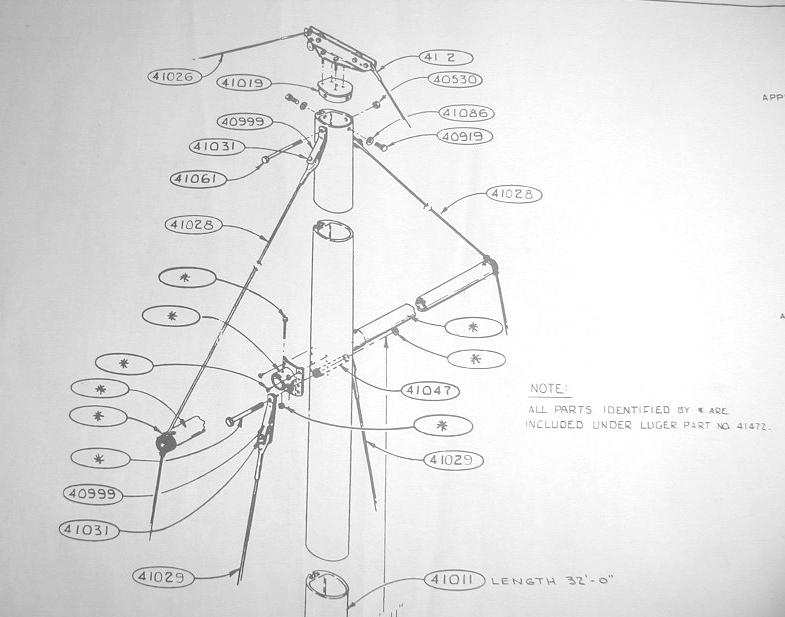

Figure 72, Mast, Upper Section Detail
Figure 73, Boom
Mast Raising/Lowering System
Instructions and Drawings, Sheets 1-2 of 2
No. 3080 Diesel Engine Installation Package

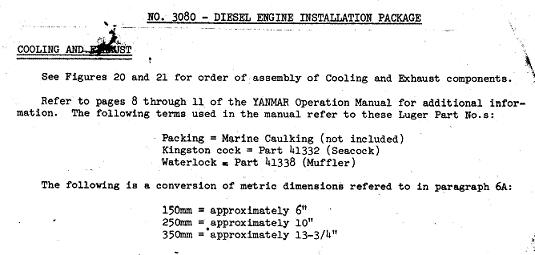

Cooling and Exhaust, Sheet 17 of 26

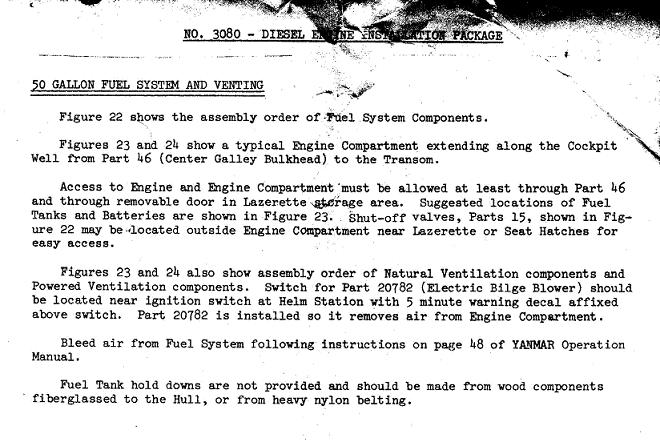

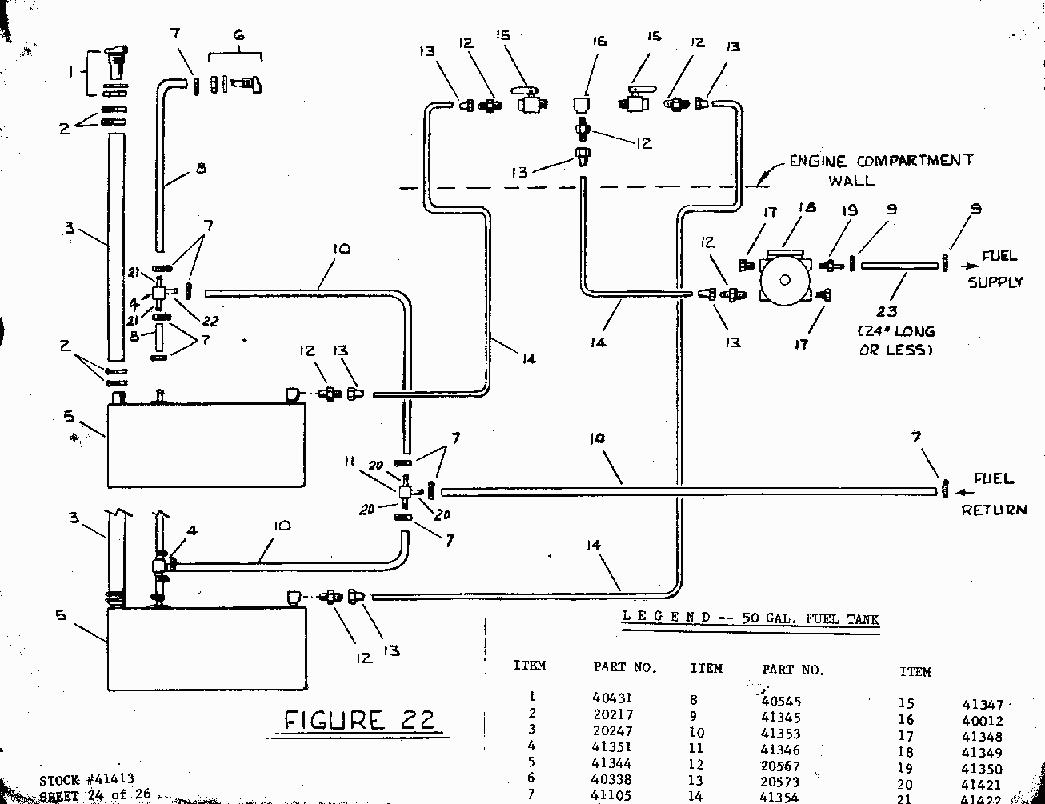

50 Gallon Fuel System and Venting, Sheet 22 of 26
Figure 22, 50 Gallon Fuel Tank, Sheet 24 of 26

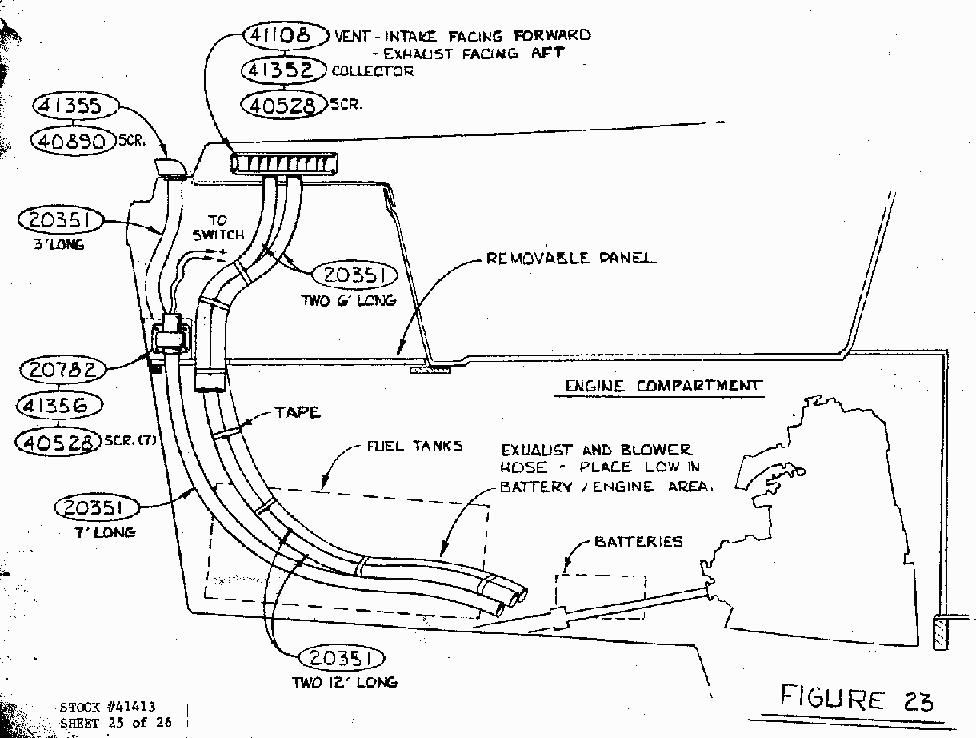

Figure 23, Engine Compartment - Starboard View, Sheet 25 of 26

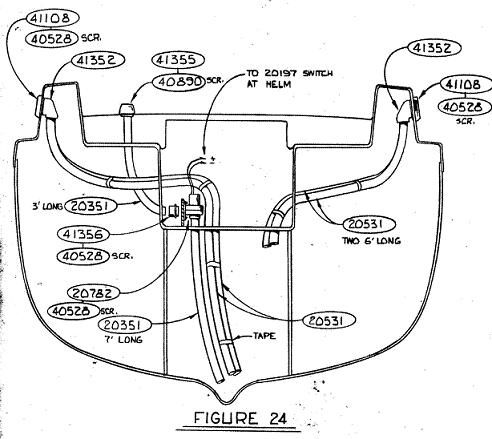

Figure 24, Engine Compartment - Stern View, Sheet 26 of 26
|
